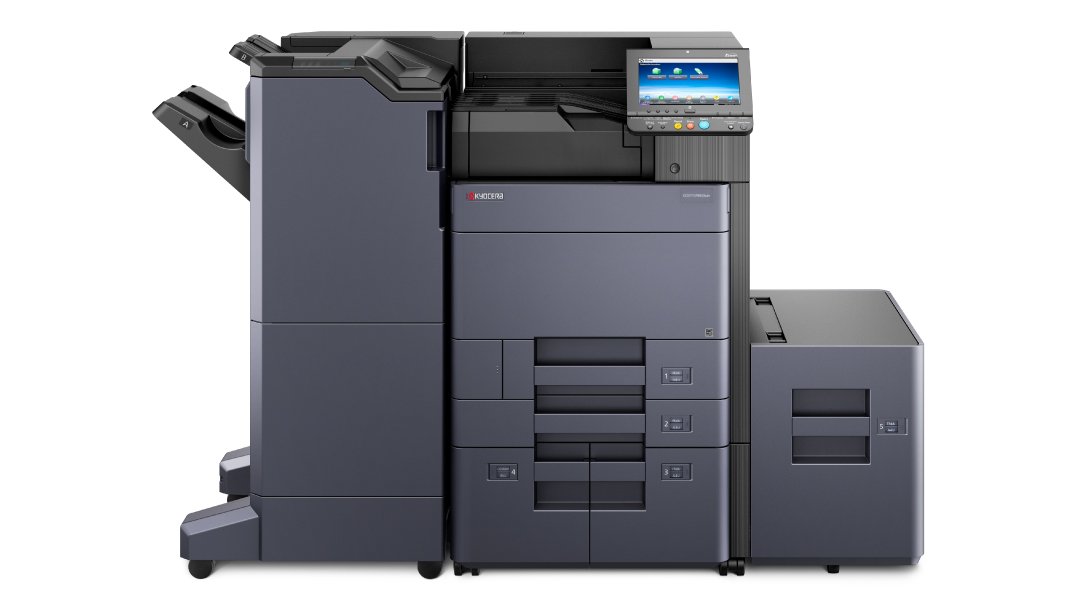

ECOSYS P8060cdn Specifications
Detailed technical specifications, controller features and paper handling
information for the ECOSYS P8060cdn high-performance color laser printer.
Main Specifications
| Specification | ECOSYS P8060cdn |
|---|---|
| Type | Desktop |
| Writing Method | Semiconductor Laser |
| Print Speed (A4) (Mono/Color) | 60 / 55 ppm |
| First Print Out Time (Mono/Color) | 3.8 / 5.1 seconds |
| Warm Up Time | 17 seconds |
| Resolution |
1,200 × 1,200 dpi, 4,800 × 1,200 dpi level |
| Duplex | Auto |
| Control Panel | 9 inch Color Touch LCD Panel |
| Power Consumption – Print Mode | 960 W |
| Stand-by Mode | 60 W |
| Sleep Mode | 1 W |
| Noise – Print Mode | 69 dB(A) |
| Noise – Stand-by Mode | 35 dB(A) |
| Dimensions (W × D × H) | 602 × 665 × 790 mm |
| Weight (Main Unit) | Approx. 89 kg |
Controller
| Specification | ECOSYS P8060cdn |
|---|---|
| CPU | T1024 (Dual Core) 1.2 GHz |
| Memory | Standard 4 GB (Max. 4 GB) |
| SSD / HDD Capacity |
SSD 8 GB (Standard) / HDD 320 GB (Standard) |
| Interface |
USB 2.0 High Speed ×1; Ethernet 10BASE-T / 100BASE-TX / 1000BASE-T; USB Host ×4; NFC TAG ×1; e-KUIO ×2; 802.11 b/g/n Wireless LAN / Wi-Fi Direct (optional) |
| PDL |
PCL6 (PCL5c, PCL-XL), KPDL3 (PostScript 3 compatible), PRESCRIBE, PDF Direct Print Ver. 1.7, XPS, Open XPS |
| Network Printing |
TCP/IP, FTP, LPR, Port9100, IPP, IPP over SSL, NetBEUI, WSD Print, Apple Bonjour, IPsec, SNMPv3, IEEE802.1x, IPP over SSL/TLS, HTTP over SSL/TLS, FTP over SSL/TLS, SMTP over SSL/TLS, POP3 over SSL/TLS, Enhanced WSD over SSL/TLS |
| Operating System Supported |
Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10; Apple Macintosh OS X 10.5 or later; Linux |
| USB Memory Printing | Standard |
| USB Memory Printing Format | TIFF, JPEG, PDF, XPS, OpenXPS |
| Mobile Printing | AirPrint, Mopria, KYOCERA Mobile Print |
Paper Handling
| Specification | ECOSYS P8060cdn |
|---|---|
| Paper Capacity – Standard |
2 × 500 sheets (Cassette) + 150 sheets (MPT) |
| Paper Capacity – Maximum |
7,150 sheets (Main Unit + 2 × 1,500 sheets PF-7110 ×1 + 3,000 sheets PF-7120 ×1 + MPT) |
| Paper Size – Cassette |
Min. A6R – Max. SRA3 (320 × 450 mm); Cassette 1: Min. A6R – Max. A4R (Legal) |
| Paper Size – Option | Min. A6R – Max. SRA3 (320 × 450 mm) |
| Paper Size – MPT |
Min. A6R – Max. SRA3 (320 × 450 mm); Banner Print up to 1,219 mm |
| Paper Weight – Cassette | 52–300 g/m² |
| Paper Weight – Option | 52–300 g/m² |
| Paper Weight – MPT | 52–300 g/m² |
| Duplex Printing |
Paper size: A6R – SRA3 (320 × 450 mm); Paper weight: 60–256 g/m² |
| Output Capacity |
Max. 500 sheets + 100 sheets face-down with Job Separator |
