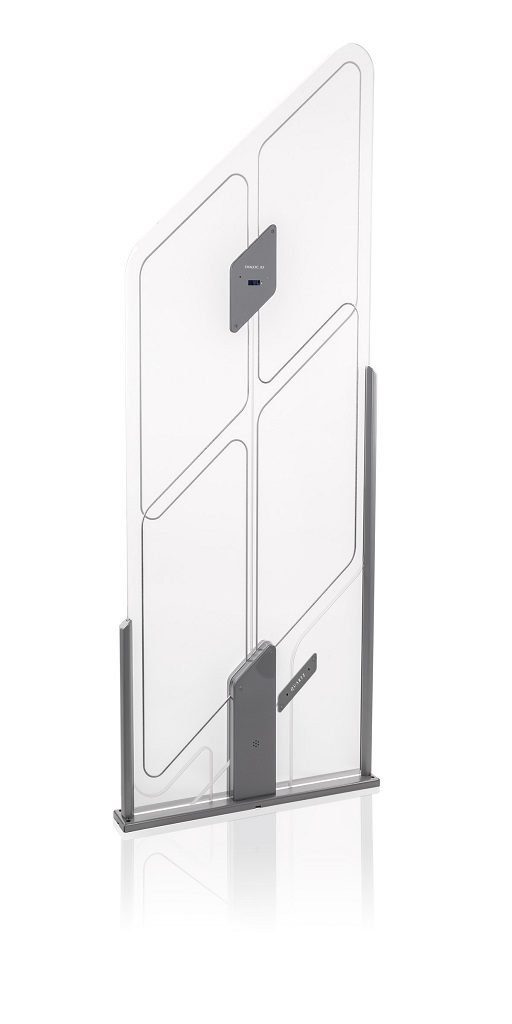

Quartz RFID — Technical Specifications
| Specifications | |
| Product | Quartz RFID |
| Antenna Dimensions | 658 × 15 × 1733 mm (W × D × H) |
| Base Dimensions | 713 × 96 × 20 mm (W × D × H) |
| Weight | 22 kg |
| Detection | |
| Detection Range | Depending on environment and the size & type of tag: • Single aisle width System 2: up to 1.60 meter • Dual aisle width System 3: up to 3.20 meter |
| RFID Specification | |
| Operating Frequency | 13.56 MHz |
| Transmitting Power | 3 W |
| Supported Tags | ISO 15693 / ISO 18000-3 Mode 1 (NXP SLI, NXP SLIX, NXP SLIX2) |
| Certifications | CE / EMC |
| Option | |
| People Counter | Bi-directional people counter with display |
| Interfaces | |
| CAN | CAN |
| Ethernet | Ethernet (TCP/IP) via the USB/Ethernet to CAN bridge tool (optional) |
| Material | |
| Panel | High density clear PMMA 15 mm plexiglas, weather and UV resistant, 92% light transmission |
| Base | Powdercoated stainless steel |
| Power | |
| Power Supply | 100 ~ 240V |
