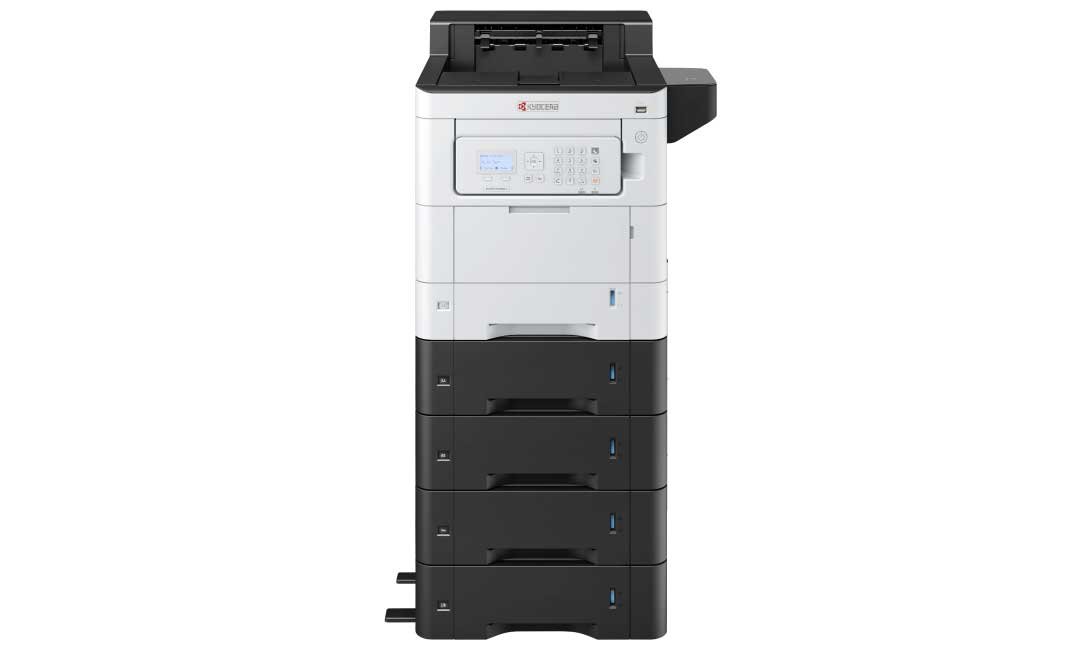

ECOSYS PA3500cx, PA4000cx & PA4500cx Specifications
Detailed technical specifications, controller features and paper handling
information for the ECOSYS PA3500cx, PA4000cx and PA4500cx color laser printer series.
Main Specifications
| Specification | ECOSYS PA3500cx | ECOSYS PA4000cx | ECOSYS PA4500cx |
|---|---|---|---|
| Type | Desktop | Desktop | Desktop |
| Printing Method | 5-lines Panel | 5-lines Panel | 5-lines Panel |
| Print Speed (A4) | 35 ppm | 40 ppm | 45 ppm |
| Panel Type | 5-lines Panel | 5-lines Panel | 5-lines Panel |
| First Print Time (Mono/Color) | 5.7 sec / 7.0 sec | 5.4 sec / 6.6 sec | 5.1 sec / 6.2 sec |
| Warm-up Time | 23 sec or less | 21 sec or less | 20 sec or less |
| Print Resolution | 1200 × 1200 dpi | ||
| Dimensions (W × D × H) | 394 × 533 × 392.5 mm | 394 × 533 × 455 mm | 394 × 533 × 455 mm |
| Weight (Including Toner Container) | 33 kg | 34 kg | 34 kg |
| Power Consumption – Copy/Print Mode | 496.4 W | 533.3 W | 576.8 W |
| Stand-by Mode | 11.8 W | 11.8 W | 11.8 W |
| Energy Saver | 0.4 W | 0.4 W | 0.4 W |
| Noise – Operating | 51 dB(A) | 53 dB(A) | 54 dB(A) |
| Noise – Stand-by | 30 dB(A) | 30 dB(A) | 30 dB(A) |
Controller
| Specification | ECOSYS PA3500cx / PA4000cx / PA4500cx |
|---|---|
| CPU |
ARM Cortex-A9 Dual Core 1.2 GHz + ARM Cortex-M3 100 MHz |
| Memory |
PA3500cx: Standard: 1,024 MB / Max.: 1,024 MB PA4000cx: Standard: 1,024 MB / Max.: 3,072 MB PA4500cx: Standard: 1,024 MB / Max.: 3,072 MB |
| PDL |
PCL6 (PCL XL / PCL 5c), KPDL3, XPS / OpenXPS, PDF |
| Encryption Communications | IPsec, HTTPS, LDAP over SSL, SNMPv3 |
| Interface |
USB 2.0 (Hi-Speed); USB Host ×2; Gigabit Ethernet (10BASE-T / 100BASE-TX / 1000BASE-T); Optional Wireless LAN (IEEE 802.11a/b/g/n/ac); eKUIO slot for optional devices; Slot for optional SD Card |
| Mobile Printing | AirPrint, Mopria, KYOCERA Mobile Print |
Paper Handling
| Specification | ECOSYS PA3500cx / PA4000cx | ECOSYS PA4500cx |
|---|---|---|
| Paper Capacity – Standard | 550 sheets (Cassette) + 100 sheets (MPT) | |
| Paper Capacity – Maximum |
2,300 sheets (Main Unit + 550 sheets PF-5150 ×3 + MPT) |
2,850 sheets (Main Unit + 550 sheets PF-5150 ×4 + MPT) |
| Paper Size – Cassette |
Max.: Folio (Legal) – Min.: A6R (StatementR); 356 × 216 mm – 140 × 105 mm |
|
| Paper Size – Option | Max.: Folio (Legal) – Min.: A5R | |
| Paper Size – MPT |
Max.: Folio (Legal) – Min.: A6R (StatementR); 356 × 216 mm – 140 × 70 mm; Banner Paper: 1220 mm long × 216 mm wide, Simplex |
|
| Paper Weight – Cassette | 60–220 g/m² | |
| Paper Weight – Option | 60–220 g/m² | |
| Paper Weight – MPT | 60–220 g/m² | |
| Duplex Printing |
A4 (Legal) – A6R (StatementE); Paper weight: 60–163 g/m² |
|
| Output Capacity | Max. 250 sheets face-down | Max. 500 sheets face-down |
