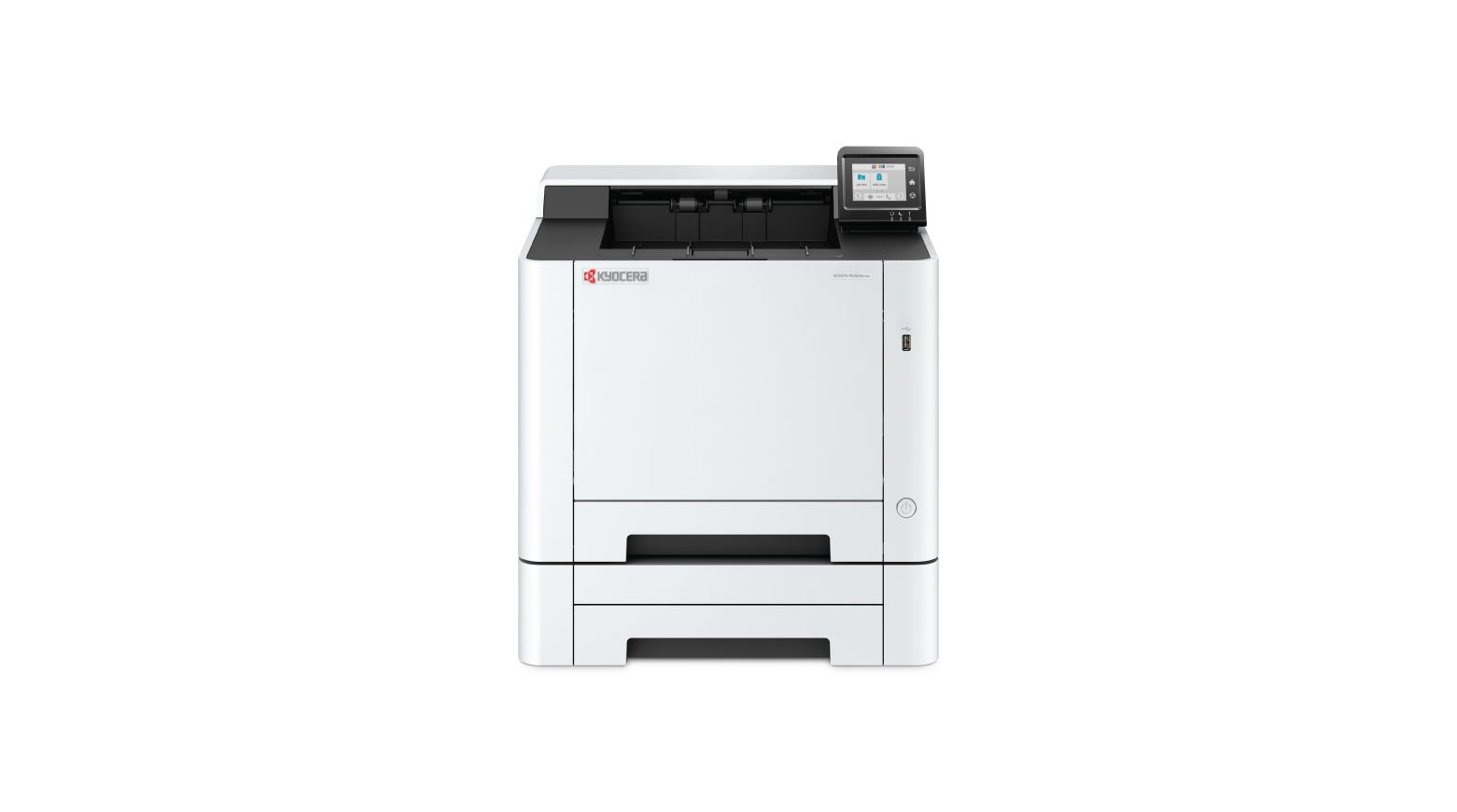

ECOSYS PA2101cx, PA2101cwx, PA2600cx & PA2600cwx Specifications
Detailed technical specifications, controller features and paper handling
information for the ECOSYS PA2101cx, PA2101cwx, PA2600cx and PA2600cwx
color laser printer series.
Main Specifications
| Specification | ECOSYS PA2101cx / PA2101cwx | ECOSYS PA2600cx / PA2600cwx |
|---|---|---|
| Type | Desktop | Desktop |
| Writing Method | Semiconductor Laser | Semiconductor Laser |
| Print Speed (A4) – Mono/Color | 21 / 21 ppm | 26 / 26 ppm |
| First Print Out Time (Mono/Color) | 10 / 12 seconds | 8 / 10 seconds |
| Warm Up Time | 32 seconds | 29 seconds |
| Resolution | 600 × 600 dpi, 1,200 × 1,200 dpi | |
| Duplex Printing |
Paper size: A5R – A4/Legal; Paper weight: 60–120 g/m² |
|
| Control Panel | 2.7 inch Touch Screen Panel | |
| Power Consumption – Print Mode | 345 W | 375 W |
| Stand-by Mode | 33 W | 33 W |
| Sleep Mode | 0.3 W | 0.3 W |
| Noise – Print Mode |
48 dB(LpAm); Quiet Mode: 44 dB(LpAm) |
49 dB(LpAm); Quiet Mode: 44 dB(LpAm) |
| Noise – Stand-by Mode | 30 dB(LpAm) | 30 dB(LpAm) |
| Dimensions (W × D × H) | 410 × 410 × 329 mm | 410 × 410 × 329 mm |
| Weight (Main Unit) | Approx. 21 kg | Approx. 21 kg |
Controller
| Specification |
ECOSYS PA2101cx / PA2101cwx / PA2600cx / PA2600cwx |
|
|---|---|---|
| CPU | ARM Cortex-A53 Single Core 1.0 GHz | |
| Memory |
Standard 1 GB (Max. 1 GB, No Expansion Required) |
|
| Interface |
USB 2.0 High Speed ×1; Ethernet 10BASE-T / 100BASE-TX / 1000BASE-T; 802.11 b/g/n/ac Wireless LAN / Wi-Fi Direct (Wi-Fi model only) |
|
| PDL |
PRESCRIBE, PCL6 (PCL XL, PCL 5c), KPDL3 (PostScript 3 compatible), XPS / OpenXPS, PDF Direct Print |
|
| Network Printing |
TCP/IP, FTP, LPR, Port9100, NetBEUI, Apple Bonjour |
|
| E-mail Printing |
Printing received e-mail data. Data format: PDF, PS, Text, JPEG, XPS, OpenXPS, TIFF |
|
| Secure Printing | IPP over TLS | |
| Mobile Printing |
AirPrint, Mopria, KYOCERA Mobile Print, KYOCERA MyPanel |
|
Paper Handling
| Specification |
ECOSYS PA2101cx / PA2101cwx / PA2600cx / PA2600cwx |
|
|---|---|---|
| Paper Capacity – Standard |
250 sheets ×1 (Cassette) + 50 sheets (MPT) |
|
| Paper Capacity – Maximum |
550 sheets (Main Unit + PF-5110 ×1 + MPT) |
|
| Paper Size – Cassette |
Min. A6R – Max. A4 (Legal); Custom: 100 × 148 – 216 × 356 mm |
|
| Paper Size – MPT |
Min. A6R – Max. A4 (Legal); Custom: 70 × 148 – 216 × 356 mm |
|
| Paper Weight – Cassette | 60–163 g/m² | |
| Paper Weight – MPT | 60–220 g/m² | |
| Duplex Printing |
Paper size: A5R – A4/Legal; Paper weight: 60–120 g/m² |
|
| Output Capacity | Max. 150 sheets face-down | |
