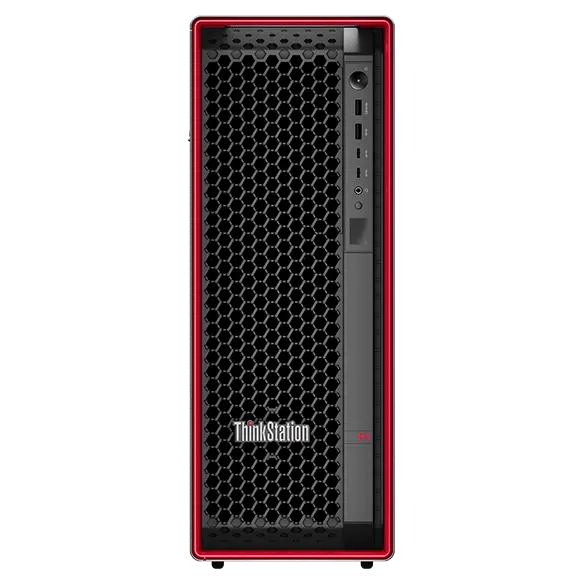

ThinkStation P5

26 Cores

2.8GHz

75MB Cache

250W

Windows 11 Pro for Workstations (preinstalled with Windows 10 Pro for Workstations Downgrade)

Ubuntu® Linux®

Red Hat® Enterprise Linux® (certified)

*Select versions available via preload

NVIDIA® RTX™ 6000 Ada (48GB GDDR6)

NVIDIA® RTX™ 5880 Ada (48GB GDDR6)

NVIDIA® RTX™ 5000 Ada (32GB GDDR6)

NVIDIA® RTX™ 4500 Ada (24GB GDDR6)

NVIDIA® RTX™ 4000 Ada (20GB GDDR6)

NVIDIA® RTX™ 2000 Ada (16GB GDDR6)

NVIDIA® RTX™ A1000 (8GB GDDR6)

NVIDIA® RTX™ A400 (8GB GDDR6)

NVIDIA® T1000 (8GB GDDR6)

NVIDIA® T400 (4GB GDDR6)

*Available in select countries

*4800MHz max speed; available depending on configuration

Supports up to 3 maximum, 4TB M.2 NVMe PCIe SSD

Supports up to 3 maximum, 12TB 3.5″ SATA 7200rpm

SATA: RAID 0 / 1 / 5

*Available Summer 2023; additional hardware may be required

Headphone / mic combo

Optional: 2 × USB-A (USB 10Gbps, 1 always-on)

Optional: 2 × USB-C® (USB 10Gbps)

Rear:

2 × USB-A (Hi-Speed USB)

3 × USB-A (USB 10Gbps)

USB-C® (USB 20Gbps)

Line in

Line out

Ethernet (RJ45)

Optional: Serial

USB port transfer speeds are approximate and depend on many factors,
such as processing capability of host/peripheral devices, file attributes,
system configuration and operating environments; actual speeds will vary
and may be less than expected.

Internal WiFi Antenna

Intel® I210-T1 Single Port Gigabit Ethernet Adapter

Intel® I350-T2 Dual Port Gigabit Ethernet Adapter

Intel® I350-T4 Quad Port Gigabit Ethernet Adapter

Intel® I550-T2 Ethernet Network Adapter

Intel® X710-DA2 Dual Port 10G Ethernet Network Adapter

*6GHz WiFi 6E operation is dependent on the support of the operating
system, routers/APs/gateways that support WiFi 6E, along with the
regional regulatory certifications and spectrum allocation.

**Bluetooth® 5.2 is hardware ready but may run at a lower version
due to OS limitation.

17.3″ × 6.5″ × 17.8″

65% post-consumer content (PCC) recycled plastic in Front and Rear Bezel

35% PCC recycled plastic inside the chassis

Packaging:

Carton: 90% Recycled and/or FSC certified content

Cushion: 90% Recycled EPE

*Packaging composed of recycled, and/or biobased, and/or sustainably
forested content.

EPEAT® Gold, where applicable

RoHS Compliant

TCO 9.0

80 Plus Platinum Power Supply

*Certification available on select models.

*Visit

www.epeat.net

for registration status by country.

Self-healing BIOS

Supervisor (blocks & prevents access to BIOS setup data)

System Management Password (functions similar to Supervisor but with less authority)

Power-on Password (prompts for password directly after pressing the power button)

Firmware Resiliency

UEFI secure boot support

HDD password protection for HDD data

Windows UEFI firmware update support

Windows Device Guard support

Smart USB Protection

Chassis Intrusion Switch

Kensington Security Slot™

Optional: Access panel lock, padlock loop, BIOS Guard, Boot Guard

1000W (92% efficient)

Altair®

ANSYS®

Autodesk®

AVID®

Barco®

Bentley®

Dassault®

McKesson®

Nemetschek®

PTC®

Siemens®

See the complete list of

ISV certifications

Office 365 trial (with Windows OS only)

USB Keyboard

USB Mouse

Quick Start Guide
