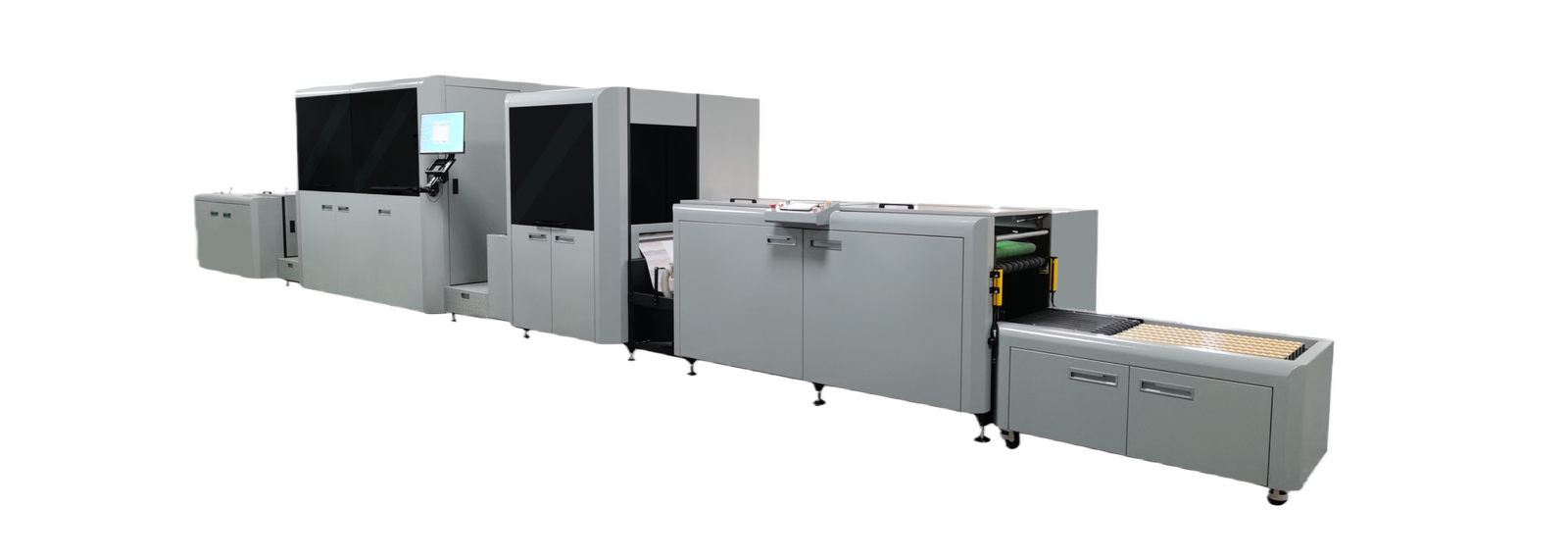

Digital Printing System — Technical Specifications
| Technology | |
| Printing Style |
Monochrome Duplex Dual-Color Duplex |
| Resolution |
1200 × 600 dpi 1200 × 960 dpi 1200 × 1200 dpi |
| Max. Printing Speed |
1200 × 600 dpi: 150 m/min 1200 × 1200 dpi: 80 m/min |
| Front-Back Registration | ±0.1 mm |
| Inkjet Head | Drop-on-Demand Piezoelectric Nozzle |
| Ink Type | Water-Based Pigment Ink |
| Drying |
Infrared drying with full automatic adjustment based on printing speed |
| Operation Interface | Visual Operation Interface |
| Paper | |
| Max. Media Width |
440 mm 560 mm 660 mm |
| Max. Printing Width |
432 mm 540 mm 648 mm |
| Media Thickness | 45–165 g/m² |
| Media Type |
Digital printing paper, inkjet coating paper, newsprint, wall paper, etc. |
| Max. Roll Diameter | 1.27 m |
| Power | |
| Mechanical Platform | Max. 35 kW |
| Infrared Drying | Max. 40 kW |
| Digital Control System | Max. 8 kW |
| Environment | |
| Temperature |
Range: 22.5–27.5°C Best Working Temperature: 25°C |
| Humidity | Best Working Humidity: 50–60% RH |
| Size & Weight |
Size: 11000 × 3500 × 2200 mm Weight: 9500 kg |
| Components | |
| Decoiling System |
Standard
|
| Paper Dust Removal System |
Standard
|
| Printing Main Unit |
Standard
|
| High Efficiency Temperature Control System |
Standard
|
| Nozzle Compensation |
Standard
|
| Paper Positioning System |
Standard
|
| Anti-Static System |
Standard
|
| Cut Stacked System |
Standard
|
| Winding System |
Optional
|
