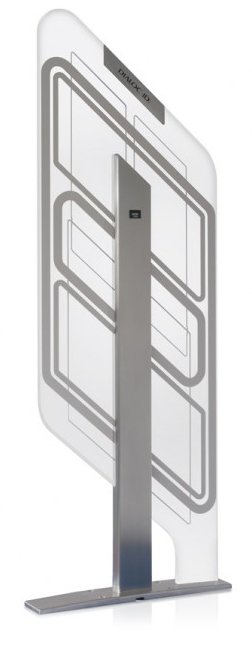

Diamond Hybrid EM/RFID Premium — Technical Specifications
| Dimensions | |
| Antenna | 655 × 20 × 1900 mm (W × D × H) |
| Base | 705 × 120 × 20 mm (W × D × H) |
| Weight | 37.5 kg |
| Detection | |
| Detection Range | Depending on the type and size of tag: • Single aisle width System 2: up to 0.90 meter • Dual aisle width System 3: up to 1.80 meter |
| EM / RFID Specification | |
| Operating Frequency | 366 Hz / 13.56 MHz |
| Transmitting Power | 3 W |
| Supported EM Tags | All Dialoc ID EM tags and various EM tag suppliers |
| RFID Tags | ISO 15693 / ISO 18000-3 mode 1 (NXP SLI, NXP SLIX, NXP SLIX2) |
| Certifications | |
| Certifications | CE / EMC |
| Interface | |
| Interface | CAN Ethernet (TCP/IP) via the USB/Ethernet to CAN bridge tool |
| Material | |
| Panel | High density clear PMMA 20mm plexiglas, weather and UV resistant, 92% light transmission |
| Base | Stainless steel |
| Power | |
| Power Supply | 100 ~ 240V |
