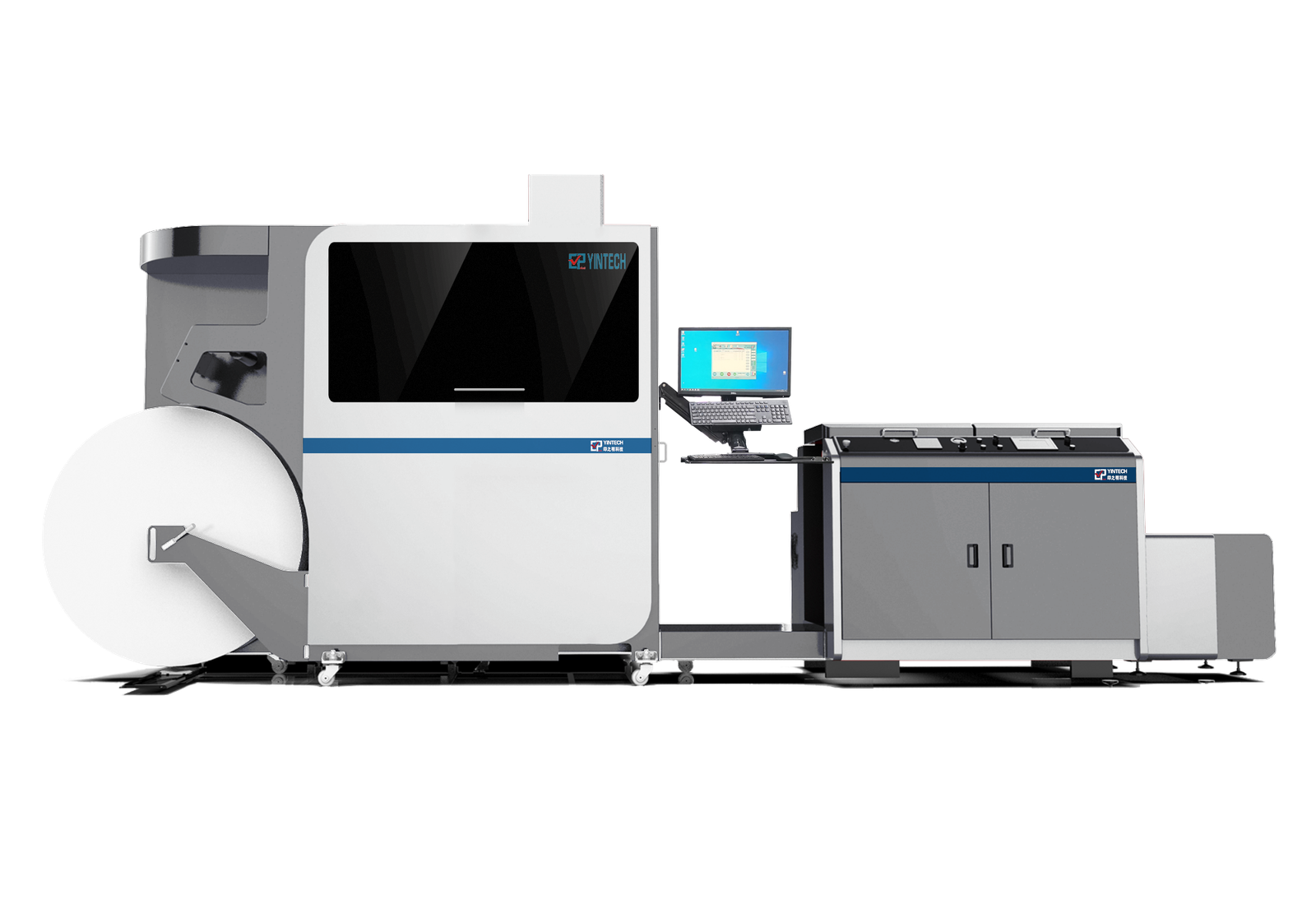

Digital Printing System — Technical Specifications
| Technology | |
| Printing style | CMYK duplex |
| Resolution | 600x600dpi / 600x1200dpi |
| Max. printing speed | 600x1200dpi — 100 m/min |
| CMYK registration | ±0.08mm |
| Front-back registration | ±0.1mm |
| Inkjet head | Drop-on-Demand piezoelectric nozzle |
| Ink type | Water based pigment ink |
| Drying | Infrared drying (full automatic adjustment on printing speed) |
| Operation interface | Visual operation interface |
| Paper | |
| Max. media width | 440mm |
| Max. printing width | 432mm |
| Media thickness | 45-165(g/㎡) |
| Media type | Digital printing paper, offset paper, inkjet coated paper, newsprint, etc. |
| Max. roll diameter | 1.27m |
| Power | |
| Mechanical platform | Max. 15KW |
| Infrared drying | Max. 25KW |
| Digital control system | Max. 5KW |
| Environment | |
| Temperature | Range 22.5-27.5°C; Best working temperature 25°C |
| Humidity | Range 40-70%; Best working humidity 50-60%RH |
| Size & Weight | Size: 5800x3500x2200mm; Weight: 5400KG |
| Components | |
| Decoiling system |
Standard
|
| Paper dust removal system |
Standard
|
| Printing main unit |
Standard
|
| High efficiency temperature control system |
Standard
|
| Nozzle compensation |
Standard
|
| Paper positioning system |
Standard
|
| Anti-static system |
Standard
|
| Cut stacked system |
Standard
|
| Winding system |
Optional
|
| Image detection system |
Optional
|
