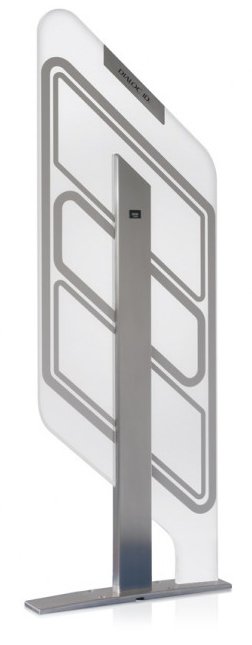

Diamond EM Premium — Technical Specifications
| Specifications | |
| Product | Diamond EM Premium |
| Antenna Dimensions | 655 × 20 × 1900 mm (W × D × H) |
| Base Dimensions | 705 × 120 × 20 mm (W × D × H) |
| Weight | 37 kg |
| Detection | |
| Detection Range |
Depending on the type and size of EM tag: • Single aisle width System 2: up to 0.90 meter • Dual aisle width System 3: up to 1.80 meter |
| EM Specification | |
| Operating Frequency | 366 Hz |
| Supported Tags | All Dialoc ID EM tags and various EM tag suppliers |
| Certifications | CE / EMC |
| Interface | |
| CAN | CAN |
| Ethernet | Ethernet (TCP/IP) via the USB/Ethernet to CAN bridge tool |
| Material | |
| Panel |
High density clear PMMA 20mm plexiglas, weather and UV resistant, 92% light transmission |
| Base | Stainless steel |
| Power | |
| Power Supply | 100 ~ 240V |
