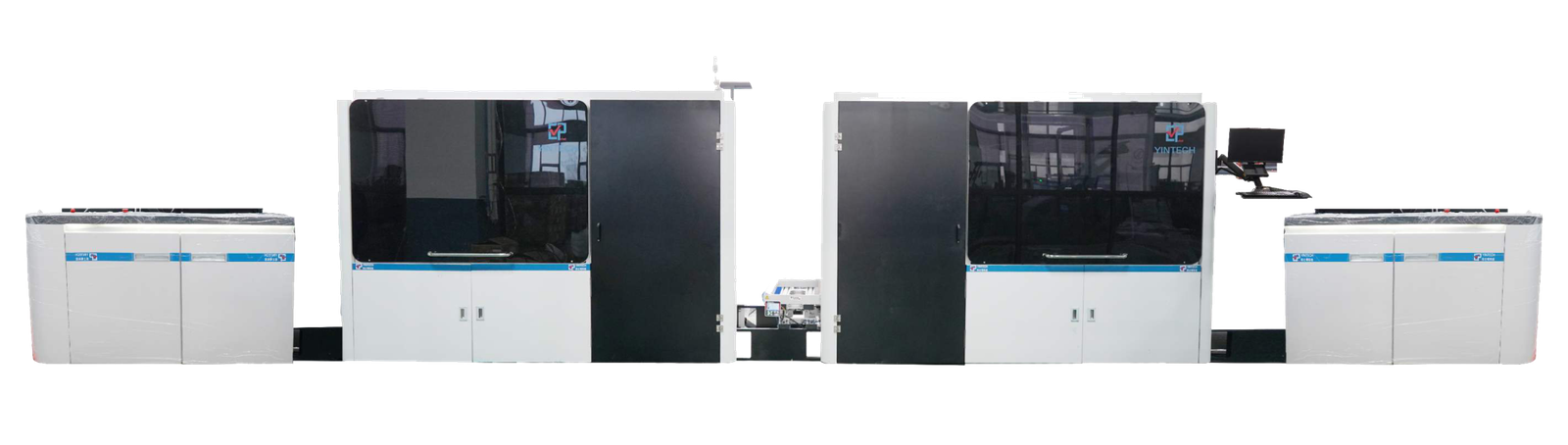

Digital Printing System — Technical Specifications
| Technology | |
| Printing Style | CMYK Duplex |
| Resolution | 1200 × 600 dpi 1200 × 1200 dpi |
| Max. Printing Speed | 600 × 1200 dpi: 200 m/min 1200 × 1200 dpi: 100 m/min |
| CMYK Registration | ±0.05 mm |
| Front-Back Registration | ±0.1 mm |
| Inkjet Head | Drop-on-Demand Piezoelectric Nozzle |
| Ink Type | Water-Based Pigment Ink |
| Drying | Infrared drying with full automatic adjustment based on printing speed |
| Operation Interface | Visual Operation Interface |
| Paper | |
| Max. Media Width | 880 mm |
| Max. Printing Width | 864 mm |
| Media Thickness | 30–600 g/m² |
| Media Type | Digital printing paper, art paper, offset paper, inkjet coated paper, newsprint, etc. |
| Max. Roll Diameter | 1.4 m |
| Power | |
| Mechanical Platform | Max. 20 kW |
| Infrared Drying | Max. 50 kW |
| Digital Control System | Max. 10 kW |
| Environment | |
| Temperature | Range: 22.5–27.5°C Best Working Temperature: 25°C |
| Humidity | Range: 40–70% RH Best Working Humidity: 50–60% RH |
| Size & Weight | Size: 12000 × 3000 × 2000 mm Weight: 12000 kg |
| Components | |
| Decoiling System | Standard |
| Paper Dust Removal System | Standard |
| Printing Main Unit | Standard |
| High Efficiency Temperature Control System | Standard |
| Nozzle Compensation | Standard |
| Paper Positioning System | Standard |
| Anti-Static System | Standard |
| Winding System | Standard |
| Image Detection System | Optional |
