AgileAsset U-Position Asset Management System
As one of the pioneer in modular data center, we are dedicated to exploring innovative solutions to provide more energy efficient, economical and flexible configurations, and better match to your current and future needs.
From single container data center to multiple container modular architecture, we provide you with sustainable solutions to invest as you grow.
Optimized Every Aspects of Container DC Designs.
Key Advantages & System Highlights
Easy Fit & Installation
The product offers flexible and modular designs with magnetic mounting, making it easy to install and adapt to different cabinet types. Its compact size saves space and supports fast deployment in data centers, telecom rooms, and server cabinets.
Easy Mounting & Reliable Signal
The product uses magnetic mounting for quick installation and maintenance, while the contact-based tag design avoids wireless signal interference. Gold-plated contact points help prevent oxidation and ensure stable, reliable communication in daily operation.
Smart Management
Supports door magnetic switch data collection.
Multiple modules can be connected in series to reduce cable length.
Product Features & Technical Specifications
Fast Identification
Millisecond-level U-position identification enables real-time asset tracking and accurate asset status updates.
Easy Setup
A web-based configuration platform supports remote setup, online configuration, and IP whitelist management for improved system security.
Wide Environment Range
Supports stable operation in temperatures from -10°C to 50°C and humidity from 5% to 95% RH.
Auto Inventory
Automated millisecond-level asset inventory helps reduce manual workload, improve accuracy, and avoid human errors.
Platform Integration
Supports third-party platform integration through HTTP northbound interface and Modbus RTU protocol interface.
Space Optimization
Real-time U-position monitoring helps optimize rack space usage and improve overall data center space utilization.
AC/DC Power
Supports AC and DC dual power supply with wide-voltage input for flexible deployment.
Low Power Use
A 47U rack-mounted U-position electronic tag consumes approximately 125 mA, supporting efficient plug-and-play deployment.
Lifecycle Management
Real-time asset monitoring and data upload support full lifecycle management, including check-in, check-out, relocation, inventory, maintenance, decommissioning, and alarms.
Precision Monitoring
Optional temperature and humidity asset tags provide high-precision monitoring with ±1°C temperature accuracy and ±5% humidity accuracy.

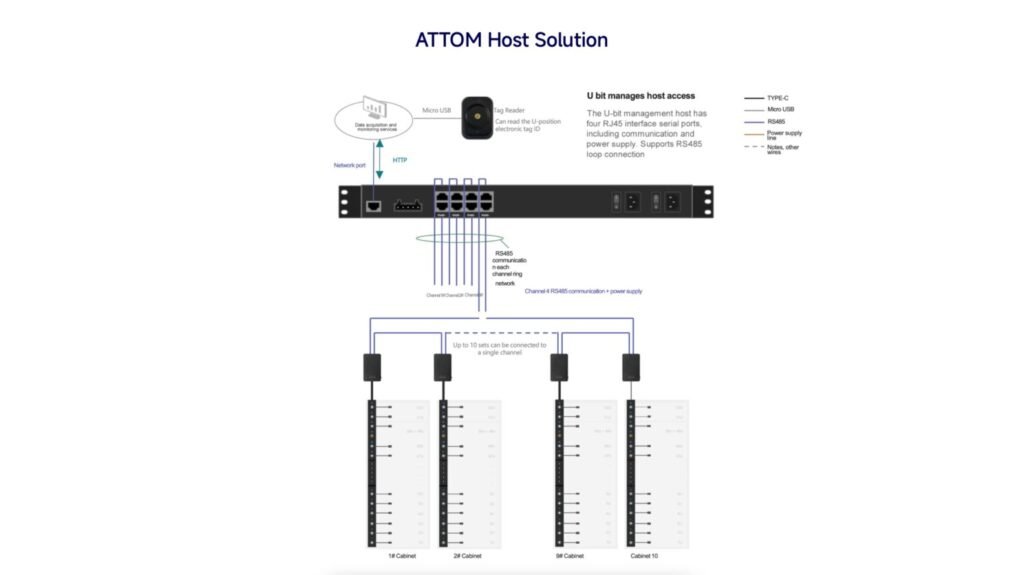

System Topology Diagram
The U-position management host is equipped with four RJ45 serial ports that support both communication and power supply, as well as RS485 ring connection. If the third-party host does not support power supply for downstream modules, it can be powered through our dedicated switching power supply module.
Product Components

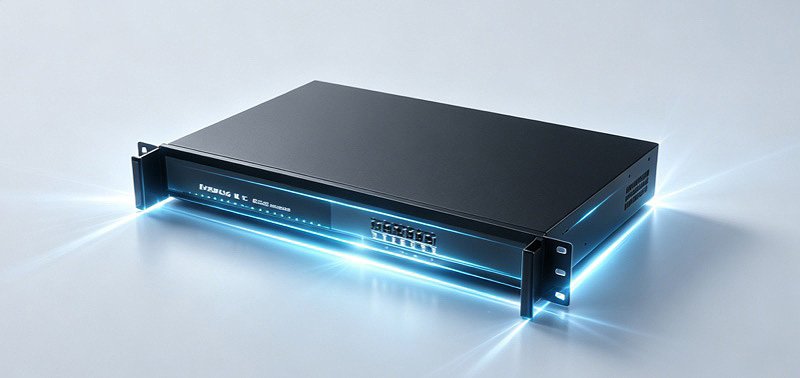

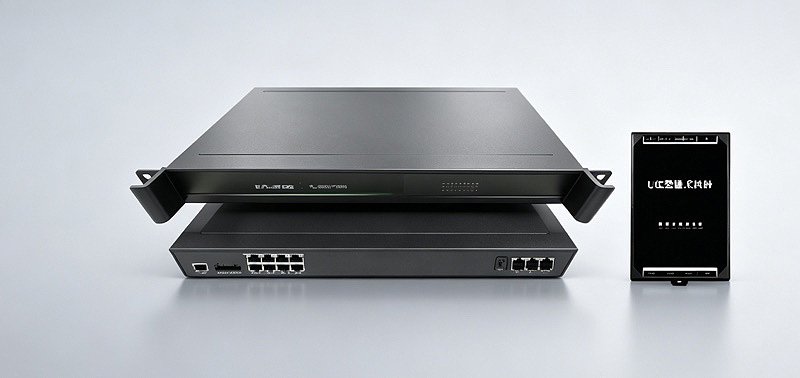

U-position management host
Data aggregation, management, and upload

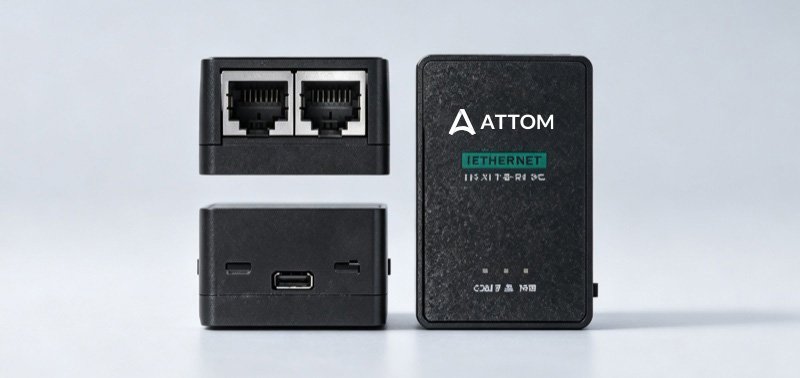

U-position detection interface module
1800kg static loading capacity IT racks.

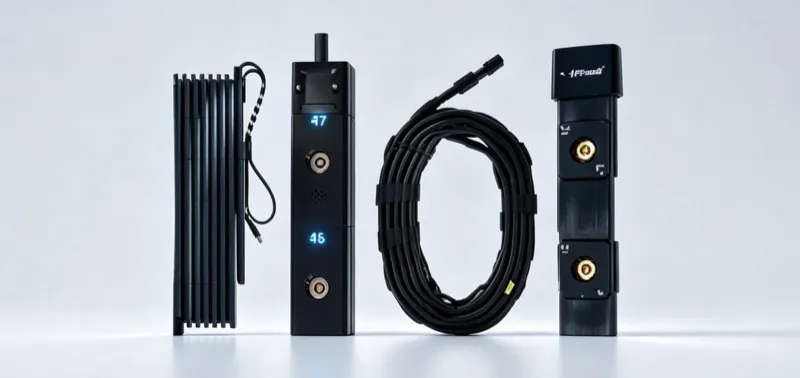

Asset strips
Cabinet U-position data collection, on-site status display, and single-cabinet temperature and humidity monitoring

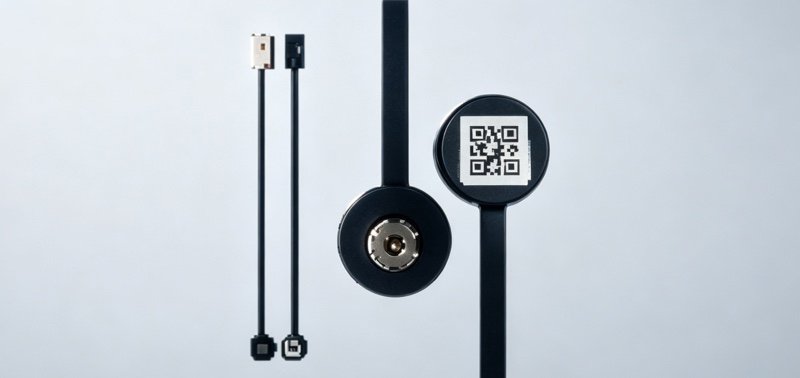

U-position electronic tags
Provides each asset with a U-position ID, automatically identifies asset location, and tracks asset status in real time

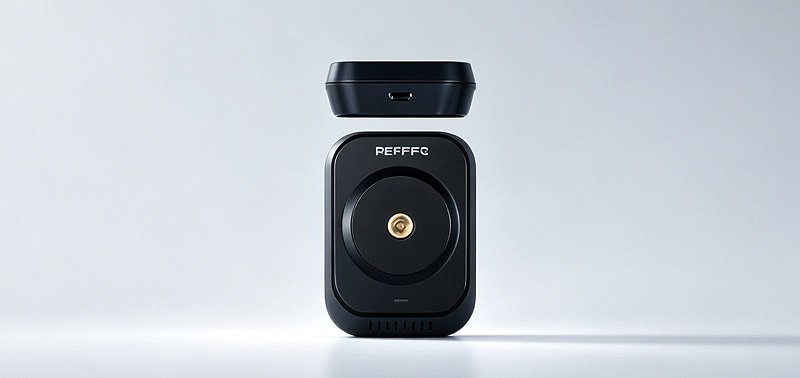

Tag reader
Reads the U-position electronic tag ID
Switching power supply module
Supports up to 16 channels of DC 12V power output
